BMU600LM Metallurgical Upright Transmitted/Reflected LCD Measuring Scope

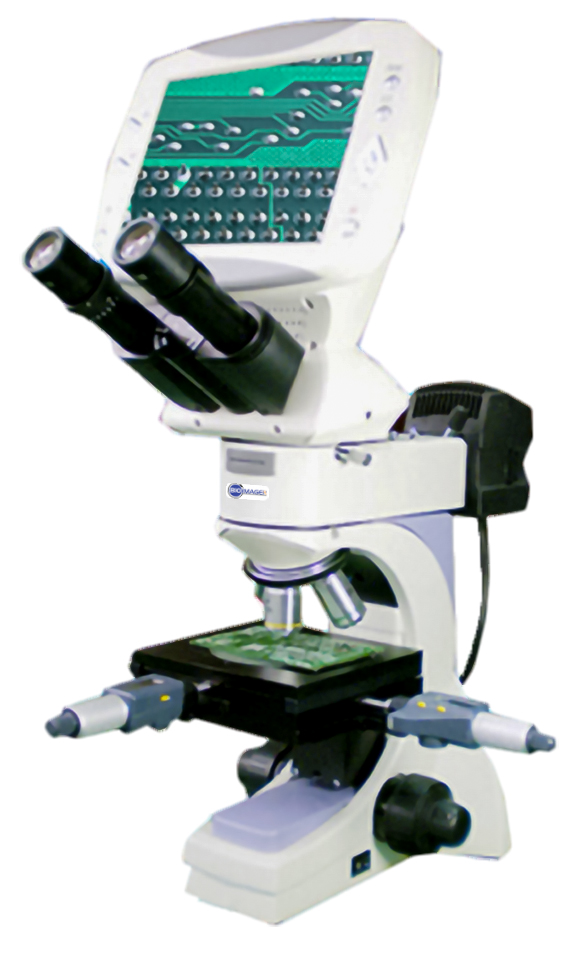

BUM600LM Metallurgical Upright Transmitted LCD Measuring Scope   Introduction BUM600L Digital LCD Metallurgical Measuring Microscope is consisted by a metallurgical microscope, a high definition LCD screen, a 5 Mega Pixel camera and a measuring stage. This microscope is designed to observe surfaces of opaque object. It is very professional and easy to operate. This is also an ideal optical instrument for micro observation and measuring in metallographic structure and surface morphology. Features Special designed metallurgical analysis optical system and an 9” LCD screen, images and videos can be share with other people. 2. 5 Megapixel with real time imaging display, images and video recording and re-playing function. X/Y digital micrometer and moving stage for accurate measuring. 12V DC power supply, safety and reliability of low voltage (Input Voltage 90-240V). SD Card for storage and printing. Application With the X/Y digital micrometer and moving measuring stage, BLM-600AM is suitable for research in metallographic, mineralogy, precision engineering, etc. . Specification Digital Parts Resolution 5Mega Pixel Photo Resolution 2560×1920 Video Resolution 1280×720/30fps Sensor Size 1/2.5 Inches LCD Screen 9 Inches HD LCD Screen, Resolution is 1280×800 Video Output HDMI Menu Language Nine Languages (English, Germany, French, Spanish, Russia, Japanese, Korean, Latin, Arabic) Storage SD Card(4G) Exposure Mode Auto Exposure Date Mode Year, Month, Day, Hour, Minute Optical Parts Viewing Head Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 55-75mm Eyepiece Wide Field Eyepiece WF10×/18 Objective Infinity Plan Achromatic 4×/0.1/∞/- WD25.4mm 10×/0.25/∞/- WD11.0mm 20×/0.40/∞/- WD6.0mm 40×/0.60/∞/0 WD3.7mm Nosepiece Quadruple Nosepiece Stage Double Layers Mechanical Stage 150mm×140mm / 75mm×50mm Focusing System Coaxial Coarse/Fine Focus System Illumination Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable Filter Blue, Green, Yellow & Ground Glass Measurement Stage X-Y Axis Moving Survey Range  30×30mm Minimum Measuring Reading  0.001mm Measurement Accurary ＜7um Optional Parts Eyepiece WF8×/18 WF10×/18 with 0.1mm Micrometer & Cross Hair WF12.5×/15 Objective Infinity Plan Achromatic 40×/0.65/∞/- WD0.78mm 50×/0.75/∞/- WD0.32mm 80×/0.90/∞/- WD0.2mm 100×/0.90/∞/0 WD0.7mm Illumination Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable Polarization Set Simple Polarization Attachment Sample Images
