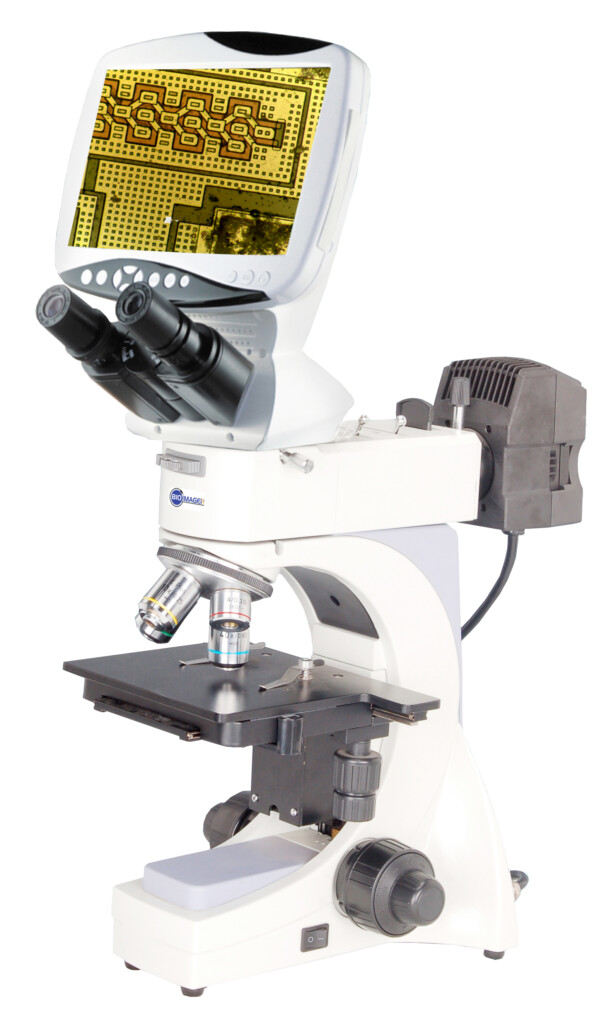

BMU600L Metallurgical Upright Transmitted LCD Microscope

BMU600L Metallurgical Upright Transmitted LCD Microscope Introduction BMU600L Digital LCD Metallurgical Microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. It combines an 8inches LCD screen and a metallurgical microscope to generate genuine photos and videos. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups alike. It is also feature the latest 5 Mega Pixels digital imaging microscopy techniques for quick and easy snapshots or videos. Features 1. Special designed metallurgical analysis optical system and a 9″ LCD screen, images and videos can be share with other people. 2. A 5Mega Pixel high resolution camera with real time imaging display and video recording function. 3. With a high definition 9″ LCD screen. 4. A 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V). 5. USB Cable for Transferring Images to a PC. 6. SD Card slot for storage, archiving and printing, optional memory cards (Maximal Storage Capacity is 4GB). 7. Multi-function top LED ring illuminating system, four-region can be control separately. Application With the specially designed metallurgical analysis optical system, it also features of easy observation, intelligence and convenient operation, powerful functions and economy, it is widely used for PCB board, LCD display and metal structure observation and inspection. Specification   Digital Parts Resolution 5Mega Pixel Photo Resolution 2560×1920 Video Resolution 1280×720/30fps Sensor Size 1/2.5 Inches LCD Screen 9 Inches HD LCD Screen, Resolution is 1280×800 Video Output AV Output (NTSC/PAL) Data Output USB2.0 Menu Language Chinese / English Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4 GB) Scene Mode Standard / Softness / Vivid Exposure Mode Auto Exposure Date Mode Year, Month, Day, Hour, Minute Optical Parts Viewing Head Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 55-75mm Eyepiece Wide Field Eyepiece WF10X/18 Objective Infinity Plan Achromatic 4×/0.1/∞/- WD25.4mm 10×/0.25/∞/- WD11.0mm 20×/0.40/∞/- WD6.0mm 40×/0.60/∞/0 WD3.7mm Nosepiece Quadruple Nosepiece Stage Double Layers Mechanical Stage 150mmX140mm / 75mmX50mm Focusing System Coaxial Coarse/Fine Focus System Illumination Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable Filters Blue, Green, Yellow & Ground Glass Optional Parts Eyepiece WF8×/18 WF10×/18 with 0.1mm Micrometer & Cross Hair WF12.5×/15 Objective Infinity Plan Achromatic 40×/0.65/∞/- WD0.78mm 50×/0.75/∞/- WD0.32mm 80×/0.90/∞/- WD0.2mm 100×/0.90/∞/0 WD0.7mm Illumination Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable Polarization Set Simple Polarization Attachment Sample Images
