Private Label Microscope with 1-, 3- or 6-LEDs

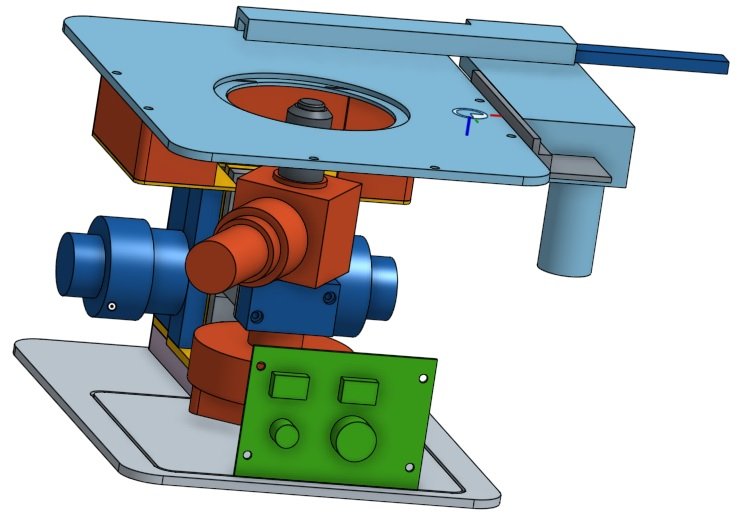

1. Super Compact Module, the smallest module in the world, inside yoru device: Winning Features: Super compact fluorescence microscope module Footprint dimensions: 53.75×34.45mm, Total optical path 70.75 mm Light source: LED (1A at any excitaion wavelength you like) Cheaper and 2.5x brighter than Lumascope module. Köhler illumination optics design for even and efficient illumination that supports full FOV (18mm for 1.25x/0.04 OL) Illuminator with Z adjustment (delivered properly aligned) Custom imaging optics optimized for emission spectrum of a fluorophore, tube lens magnification: 0.2x (18mm dia. object FOV fits in 1/2” camera chip height: 18×1.25×0.2 = 4.5mm) Tube lens designed to use full efficiency of objective lens (without limiting fluorescent light), which effectively provides over 75% more light than the best avilable in the market RMS thread for objective lens mount Male C-mount camera interface with Z axis adjustment (delivered in aligned position) Excitation filter, dichroic mirror and emission filter INCLUDED in this quotation; sizing required for EX and EM 18mm dia.; DM 25x18mm rectangular MOQ applies. This single LED application has unlimitted application. We offer up to 40 different LEDs and custom filters. Popular application is fluorescnce imaging like GFP for C. Elegans. We also offer reflected Amber (590nm) or far-red LED for IVF (in vitro fertilization), embryo incubation system with Hoffman-like phase contrast module, way cheaper than Primo Vision microscope. 2. 2-LED module: 3. QScope-3N: 3-LED Imaging with nosepiece Popular Fluorophores: green fluorescence protein (GFP), red fluorescence protein (RFP) or Texas Red, Dapi/Hoechst Nosepiece: RMS thread with 3 or 4 ports  4. Single LED with a nosepice or an objective lens turret:
