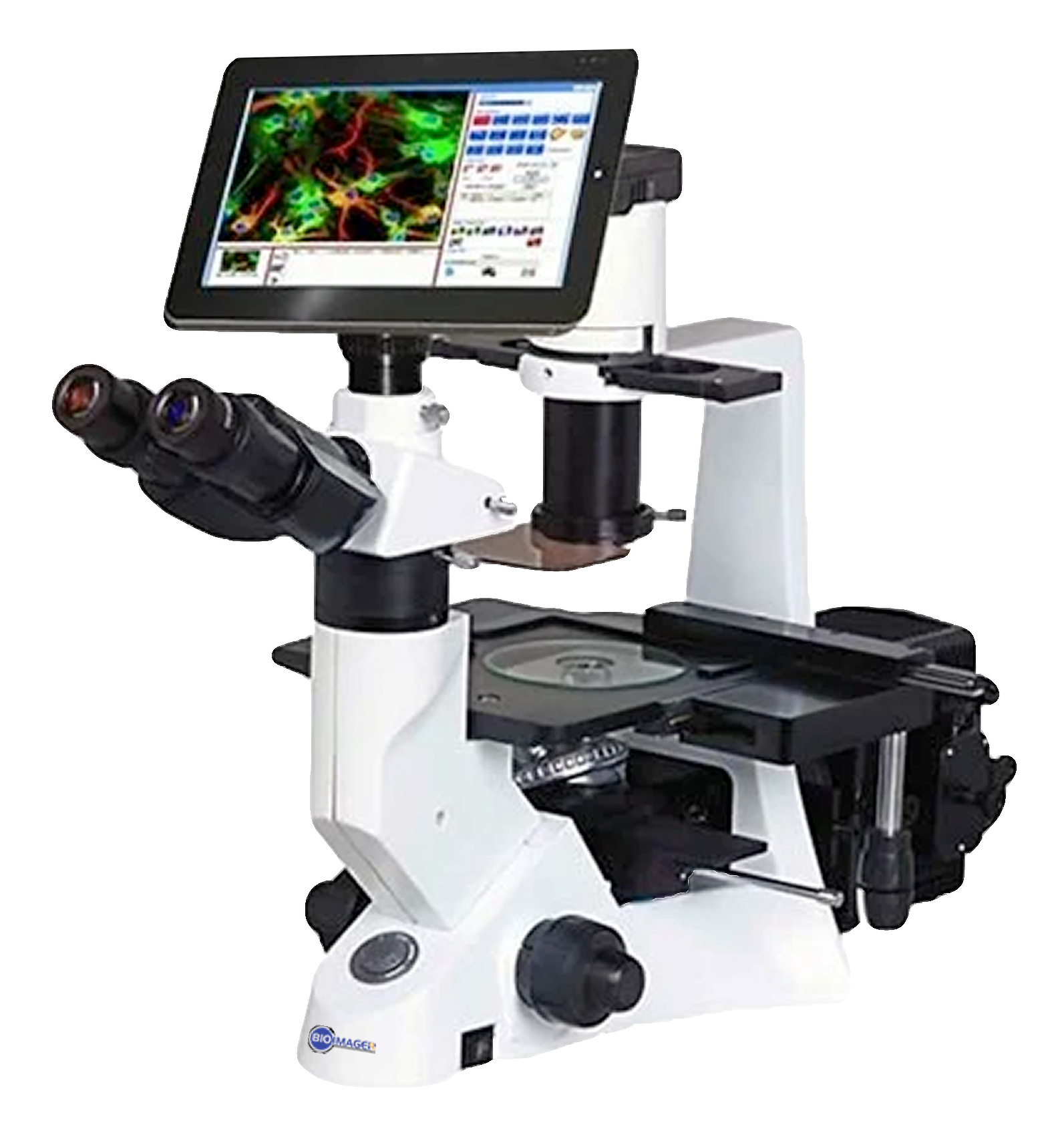

BIM500P Polarized Biological Inverted Microscope 40x-400x

BioiImager has developed a polarization kit for an inverted biological microscope BIM500 series, for the first time. This uses a transmitted halogen illumination light 6V/30W. Below are the products specifications, video demonstration and sample video. Viewing Head Trinocular Head Inclined at30°, Interpupillary Distance48-75mm ● Eyepiece High-point, Extra Wide Field Eyepiece EW10×/ 22 ● Objective Lenses LWD (Long Working Distance) Infinite Plan Objective 4×/ 0.1, WD 18mm ● 10×/ 0.25, WD 10mm ○ 20×/ 0.4, WD 5.1mm ○ 40×/ 0.6, WD 2.6mm ● 50x/0.80, WD 1mm ○ 60x/0.85, WD 0.20 ○ Infinite Plan Phase Objective PH10×/ 0.25, WD 10 mm ● PH20×/ 0.4, WD 5.1mm ● PH40×/ 0.65, WD 0.35mm ○ Nosepiece Quintuple Nosepiece ● Pol Kit Polarizer ● 360 rotation Analyzer ● Condenser ELWD (Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) ● Centering Centering Telescope (Φ30MM) ○ Phase Annulus 10×-20×, 40× Phase Annulus Plate(Center Fixed) ● 10×-20×, 40× Phase Annulus Plate(Center Adjustable) ○ Stage Plain Stage 160×250mm ● Glass Insert ● Attachable Mechanical Stage, X-Y Coaxial Control，Moving Rang120mm×78mm ○ Auxiliary Stages 70mm×180mm ● Terasaki Holder ○ Φ38mm Petri Dish Holder ○ Φ54mm Slide Glass Holder ○ Focusing Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation ● Illumination Halogen Lamp 6V/30W ● Filter Diameter 45mm, Blue, Green and Ground Glass ● Photo Attachment Photo Attachment ○ Video Adapter Video Adapter with C Mount ○ Fluorescence Attachment Inverted Fluorescence Attachment FI-100 ○ Dimension& G.W. 46.5cm*39.5cm*64cm, 15.5kg ● Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories. Viewing Head Options: 1) Trinopcular Head 2) BRC-2012 : 2MP Camera, 11.7″ Retina Display, Trinocular Head 3)BRC-6012  6MP Camera, 11.7″ Retina Display, Trincoular Head 4) BLC-12097 12MP Camer, 9.7″ HD LCD Display, Binocular Head Video Demonstration with BRC-2012 and mineralogy slide: Sample slide visualized with BIM500P Polarized Biological Inverted Microscope at 10x objective lens and BRC-2012K Black Retina Display Camera: 11.6 Retina with 2MP True Color Camera:
