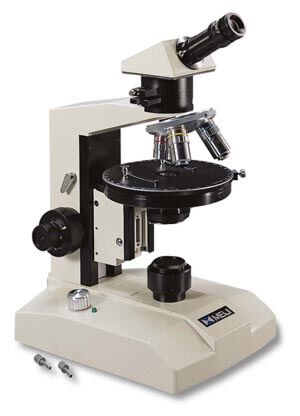

ML9100 / ML9200 / ML9300 Polarizing Microscope with Transmitted light

Polarizing Microscope with large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control. Meiji manufactures these microscopes for most applications in Geology, Petrology, Mineralogy, Toxicology, Chemistry, Pharmaceutical, Medicine, Pulp/Paper, Atmospheric pollution, Ceramics Technology, Forensic Medicine, etc. The ML9000 Series features include: Polarizing microscope, binocular head with DIN standard eyepiece HWF10X and DIN focusing HWF10XF eyepiece with cross-line reticle. Centerable quadruple nosepiece with SM Plan strain free objectives 4X, 10X,40X(S) (Magnification factor 1.5X) Rotatable stage with graduation 360°, with vernier, Abbe condenser NA 1.25 with Iris, filter holder and blue filter. Rotatable polarizer in swing-out mount, analyzer and Bertrand lens in sliding mount Coaxial coarse and fine adjustment with graduation, built-in Koehler illuminator with halogen lamp 6V 30W light intensity control. Includes Mica 1/4 wave plate and first order red plate. Supplied with dust cover in styrofoam case.
