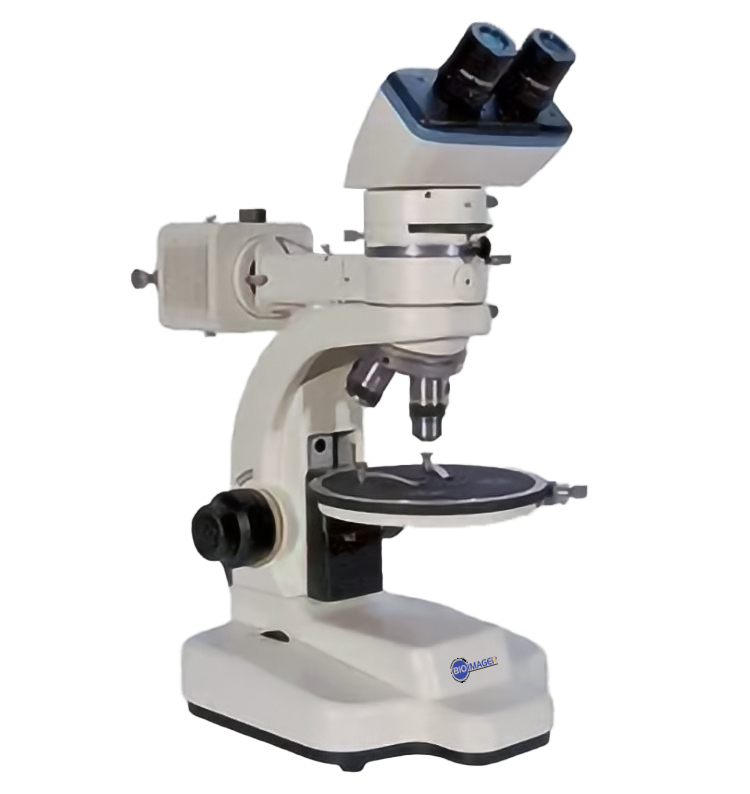

BPM530 Reflected Polarizing Microscope

Introduction The BPM530 series reflected polarizing microscopes are specifically designed for geology, minerals, metallurgy,university teaching laboratories and other sectors. They also can be used in chemical fiber industry, semiconductor industry and the pharmaceutical inspection industry. Digital camera can be used together with the microscope for image analysis. Features 1. Reflected polarizing microscope for normal inspection and education. 2. Widely used in petrology, geology, mineralogy, metallurgy, materiology and so on. Specification Model BPM530 B BPM530 T Viewing Head Sliding binocular viewing head, Inclined at 45° ● Sliding trinocular viewing head, Inclined at 45° ● Eyepiece Eyepiece WF10×/20 with scale of cross hair ● ● Eyepiece WF10×/ 20 with graticule ● ● Eyepiece WF 10×/20 ● ● Objective Strain free achromatic objective 4×,10× ● ● Strain free plan achromatic objective 25×, 40×, 63× ● ● Lamp house adjustment objective ○ ○ Nosepiece Backward quadruple nosepiece, Center adjustable ● ● Analyzer Rotatable analyzer with gradation 0°-90° ● ● Bertrand Lens Bertrand lens, Sliding in/out of optical path ● ● Optical Compensator λ Slip(First class red), 1/ 4λ Slip, Quartz wedge ● ● Revolving Round Stage Diameter Φ160mm, Graduated in 1°Increments, Minimum resolution 6′ when using vernier Scale ● ● Focusing Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm ● ● Illumination 12V/ 50W Halogen lamp, Brightness adjustable ● ● Accessories Mechanical stage, Moving rang 30×40mm ● ● Specimen presser ○ ○ Micrometer ● ● Note: ●Standard Outfit, ○Optional
