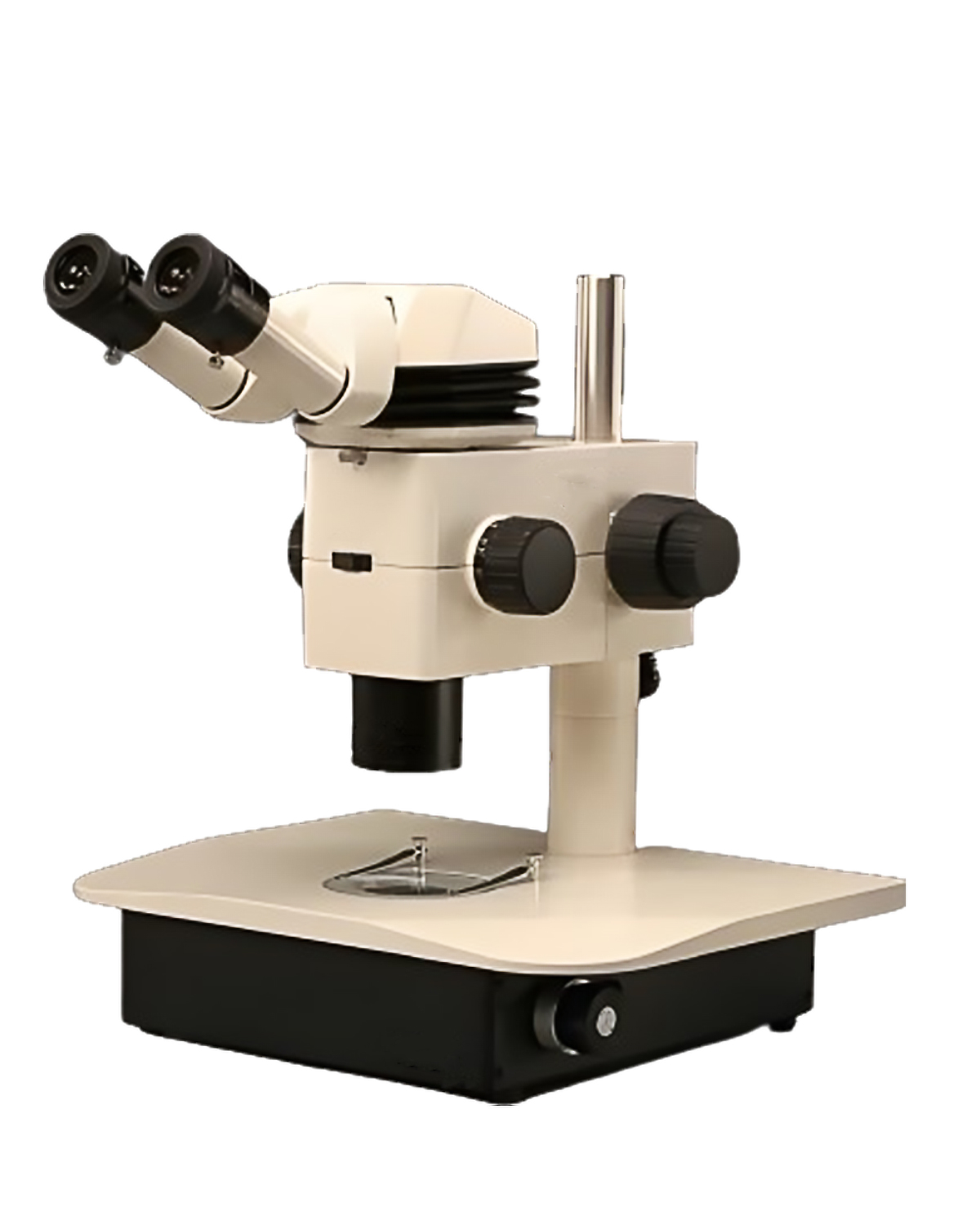

Configurable RZ Meiji Techno Research Zoom BF/DF Stereo Microscope

The RZ-BD stereo zoom microscope includes the following: Microscope Body: Stereo binocular zoom microscope body and focusing block provides 10:1 zoom ratio, with built-in double iris diaphragm and positive detente click stops at 12 positions of magnification between 0.75x – 7.5x. The RZ microscope is coated with a special anti-static finish, which is especially useful when working with sensitive electronic components. Objective: Five common main objectives are available. View the magnification chart below to determine zoom range with each of the objectives listed below: Plan objective 0.5x, working distance = 164mm Plan objective 0.75x, working distance = 101mm Plan objective 1.0x, working distance = 76mm Plan objective 1.5x, working distance = 43mm Plan objective 2.0x, working distance = 29mm Viewing Head: Includes ergonomic viewing head with low positioned eyetubes. The head is adjustable vertically from 10° to 50° for comfortable, fatigue-free viewing. Interpupillary distance is adjustable from 52mm – 75mm. The optional standard economical binocular head is inclined at 45° with an interpupillary adjustment ranging from 46mm – 75mm. Zoom Ratio: 10:1 Zoom Control: Two perpendicular columns of eight zoom lenses in four gropus move in a smooth continuous motion by rotation of the ergonomically sized and positioned zoom control. Magnification: varies based on eyepieces and objective selected. Eyepieces: Your choice of distortion-free, ultra widefield 10x, 15x or 20x high-eyepoint eyepieces with dioptric adjustment. 10x eyepieces accept 25mm reticle, 15x and 20x accept 19mm reticle. Microscope Stand:Brightfield/Darkfield transmitted light stand features 6v, 30w halogen illumination with variable intensity control, a 95mm diameter clear glass stage plate, two stage clips and an anti-static finish. Quickly change from brightfield to darkfield with easy to reach front-mounted controls. A second transformer is mounted in the base for optional COX illumination or an auxiliary light source. Base dimensions: 280mm wide x 255mm deep x 85mm high. Pillar height: 325mm. Focusing: Coaxial coarse and fine focus mechanism with a 50mm focusing range is provided for ultra-smooth and precise focus control. Illumination: Microscope stand has built-in 6v, 30w halogen illuminator with variable intensity control for brightfield/darkfield work. Included: Microscope includes eyesheilds, owner’s manual and dust cover. Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days. Please check “More information” tab for detailed info.
