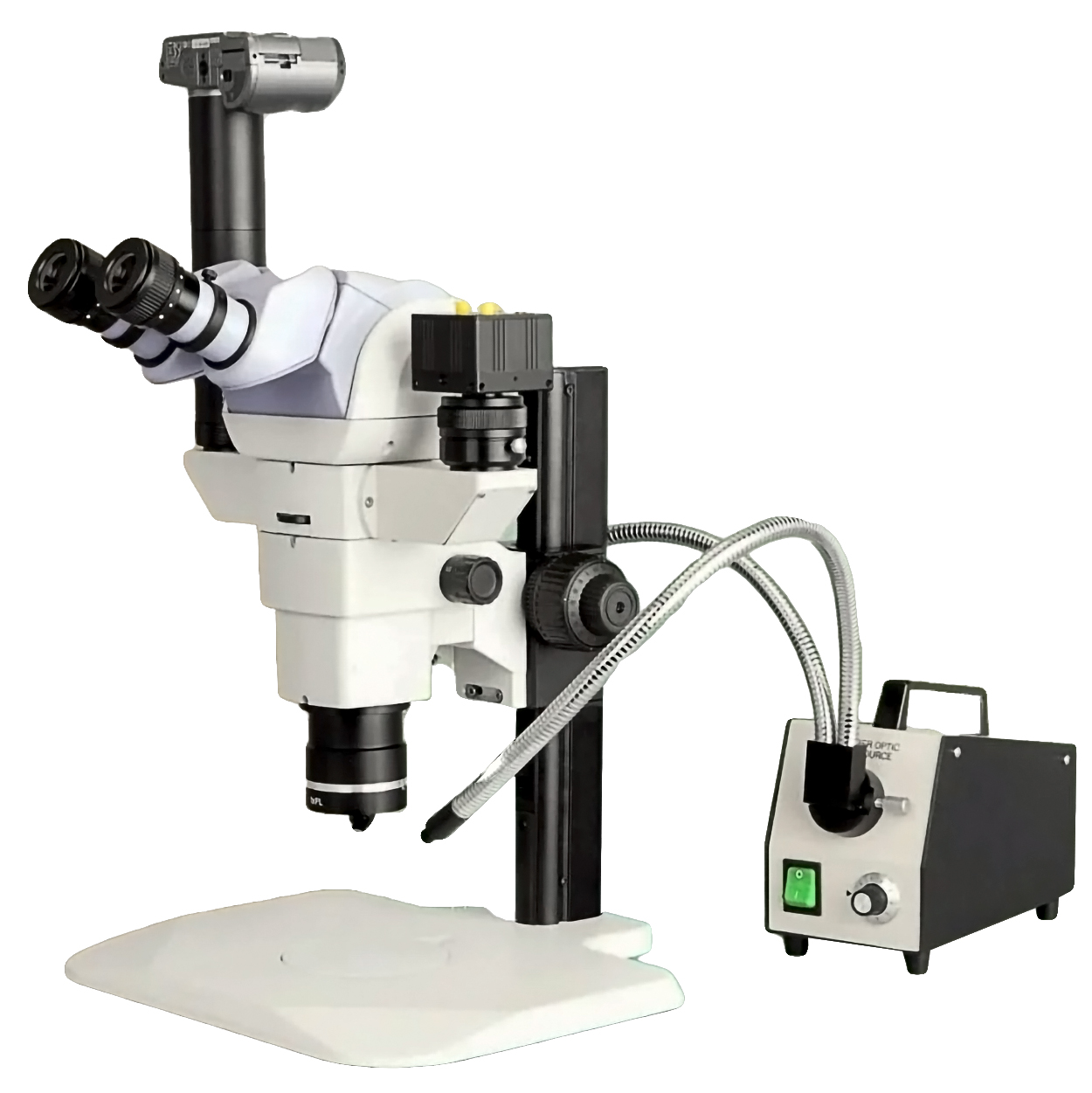

BSM700 Research Zoom Stereo Microscope

Specifications Item Specification Outfits Cat. No. Objective Body Galileo optical system, Left and right parallel optical path, Non-coaxial image, Zoom range: 0.68X-4.5X ● BSM7-MB Viewing Head Head incline is adjustable from 0°-30°, 180° outside rotation and higher eye point to 80mm,Eyepiece locked ring ● BSM7-VHE Focusing System Coaxial coarse and fine focusing system, Coarse stroke 240mm, Fine division 0.002m Without illumination ● BSM109101 With 6V/15W Halogen reflecting illumination ○ BSM109102 Eyepiece (Diopter Adjustable) WF10X/23mm ●● BSM7-10X WF10X/23mm (Reticule, X axis: 0.1mm/100 division) ○ BSM7-10XR WF10X/23mm (Reticule, X axis: 0.05mm/200 division) ○ BSM7-10XR2 WF10X/23mm (Grid, X axis: 0.1 X 0.1mm/100 division) ○ BSM7-10XR3 WF16X/14mm ○ BSM7-16X WF20X/12mm ○ BSM7-20X WF25X/9mm ○ BSM7-25X WF30X/8mm ○ BSM7-30X Objective 0.3X achromatic objective (W.D=328.93mm) ○ BSM7-0.3X 0.5X achromatic objective (W.D=197.19mm) ○ BSM7-0.5X 0.7X achromatic objective (W.D=148.00mm) ○ BSM7-0.7X 1Xachromatic objective (W.D=93.87mm) ● BSM7-1.0X 1X plan achromatic objective (W.D=84.92mm) ○ BSM7-1.0XPL 1.5X achromatic objective (W.D=46.69mm) ○ BSM7-1.5X 2X achromatic objective (W.D=34.04mm) ○ BSM7-2.0X 2.5X achromatic objective (W.D=22.53mm) ○ BSM7-2.5X Image Output Unit One side image output unit ○ BSM7-TR Double sides image output unit ○ BSM-TRS Coaxial Illumination Unit 1W/LED illumination unit ○ BSM7-TZLED/1W Single soft optical fiber 5W/LED cold light unit, Fiber length: 550mm, Light passed diameter: 8mm ○ BSM7-TZLED/5W Base Standard base (without illumination) ● BSM7-STB Transmitting illumination base, output: 6V/15W halogen lamp ○ BSM7-STT C-mount 0.35X C-mount ○ BSM7-0.35XC 0.5X C-mount ○ BSM7-0.5XC 1X C-mount ○ BSM7-1XC Adaptor for Digital Camera ○  BSM7-SLR Optical Fiber Cold Lighting Unit (5W/LED) Ring soft optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm ○ LGY-R/LED Double hard optical fibers cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm ○ LGY-D/LED Single soft/hard optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm ○ LGY-S/LED Optical Fiber Cold Lighting Unit (150W/Halogen) Ring soft optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm ○ LGY-R Double hard optical fibers cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm ○ LGY-D Single soft/hard optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm ○ LGY-S Note: “●”In Table Is Standard Attachment. “○” Is Optional Accessories
