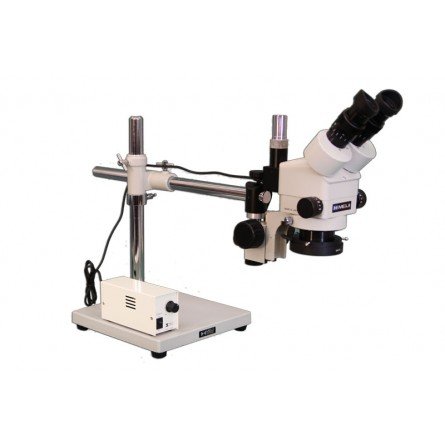

Boom Stand Inspection Microscopes for SMD, SMT & MDM

Boom Stand Inspection System Zoom Stereo Microscopes composed of the following items: 1. Zoom Stereo Microscope Options: Model EMZ-5TR EMZ-8TR Zoom Range: 0.7x-4.5x 0.7x-4.5x Zoom Ratio: 6.5:1 6.5:1 Magnification (with 10x): 7x-45x(90x with 20x eyepices) 7x-45x(90x with 20x eyepices) Working Distance: 93mm 104mm Extended Magnification Range 2.45x-20.5x 2.45x-20.5x 2. Universal Boom Stand Universal boom stand with 20 mm drop down post for F or FX block 400mm vertical post, S4100 3. Focus Block   F Focus block with Coarse Focus Focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies. 4. Eyepieces Superwidefield eyepieces (paired) to select: 5x 7.5x 10x / FN23(included) 12.5x 15x 20x / FN11.5(included) 30x/FN 5. Auxilliary lens: Supplementary lens 0.5X, working distance becomes double  6. Illumination Ring LED for SMD Application (MA964) 60 LED Array / 1860 cd (candela) 10,000 hour rated lifetime 53mm – 60mm inside diameter CE approved Annular Fiber Optic Illuminator for SMT, SMD or MDM Application (FT192) Variable intensity 150W quartz halogen light source with 60mm I.D. Dual arm 150W ber optic illumination system for SMD and MDM (FT191) Variable intensity 150W quartz halogen light source with self supporting dual arm light guide 7. Accessories (optional) a) C-Mount Adapter “C” Mount Adapter with 0.3X lens (Slips over existing 1/3″ CCD photo tube) (21mm reticle mount) b) Calibration Slide & Reticle (optional) Reticle Calibration slide
