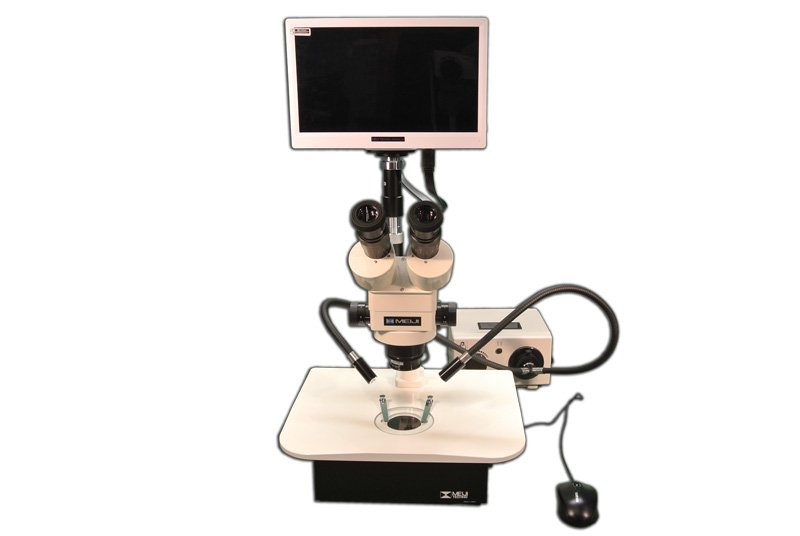

IVF TRINOCULAR IN-VITRO FERTILIZATION SYSTEM STEREO MICROSCOPE

IVF zoom trinocular stereo microscope, complete set comprises composed of the following items: 1. Zoom Stereo Microscope  Options:     Model EMZ-13TR EMZ-8TR Zoom Range: 1x-7x 0.7x-4.5x Zoom Ratio: 7:1 6.5:1 Magnification (with 10x): 10x-70x 7x-45x Working Distance: 90mm 104mm Extended Magnification Range 3x-420x WD: 32mm-230mm 2.45x-20.5x WD: 57mm-250mm 2. Stand Pole type stand with rotatable and sliding Y-axis mirror in base with locking tension ring and “pseudo” LED transmitted light dark eld illumination, with variable intensity controls, clear glass stage plate, two stage clips. Wide ergonomic base dimensions is 12”(Length) x 15” (Wide), (9.5” pillar height, 20mm diameter pole) Integrated automatic voltage sensing power supply 115/240 volts 3. Focus Holder FC Coarse and Fine Focus Block/Holder Focus holder with coaxial coarse and fine focus for high magnification applications where precise fine focus adjustment is required. Rack and pinion mount allows smooth, precise focusing over 33mm of travel. Coarse and fine focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 82mm long mounting post (FC11 adapter is required for mounting to the 71mm long posts on our S-4100, S-4200, and S-4500 stands). The 84.2mm diameter opening accepts all EM Series stereo bodies. 4. Retina Display Camera You have three options:   BRC-6012 6MP Camera, 11.6″ Monitor, White (Included) BRC-2012K 2MP Camera, 11.6″ Monitor, Black (Alternative) BLC-5097 5MP Camera, 9.7″ Android, Silver (Alternative) 5. Illumination Dual Arm 150W Fiber Optic  System for Incident /Reflected Illumination  6. Accessories Required accessories were prepared and included in the imaging bundle by BIOIMAGER: a) C-Mount Adapter “C” Mount Adapter with 0.3X lens (Slips over existing 1/3″ CCD photo tube) (21mm reticle mount)   b)  Eyepieces Superwidefield eyepieces (paired) to select: 5x 7.5x 10x / FN23 (included) 12.5x 15x 20x / FN11.5 (included) 30x/FN   c) Auxilliary lens   d) Calibration Slide & Reticle (optional) Reticle Calibration slide
