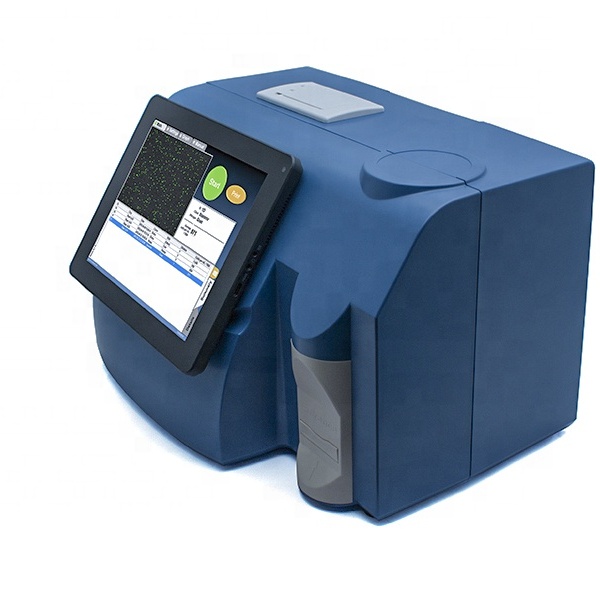

FLUORESCENT SOMATIC CELL COUNTER LactoScan BSCC-500

FLUORESCENT SOMATIC CELL COUNTER LactoScan BSCC-500 Only 4 easy and simple steps Working principle The BSCC-500 somatic cell counter is an automated fluorescence microscope / cytometer. The analysis of the milk is precise, reliable and fast – thanks to the fluorescent dye, laser diode, microscopy optics, CMOS imaging sensor and smart software used in the design of this flow cytometer, i.e. LactoScan BSCC-500. Verification as microscope There is no need of calibration, only a graduated scale on a LACTOCHIP is used for verification of the magnification as per requirements of ISO 13366-1 : 2008 (IDF 148-1:2008) Milk — Enumeration of somatic cells — Part 1: Microscopic method (Reference method). Counting Area The counting area of the LACTOSCAN SCC has 43 times larger area than a standard hemocytometer and 12 times larger area than similar instruments. Analysis Results: Analysis time: 20-60 sec Measuring range: 0 – 10,000, 000 cell/ml Measuring cell size range: 2-30 µm Color indication for sub-clinical and clinical mastitis.
