0.33MP & 1.3MP SWIR Machine Vision Camera

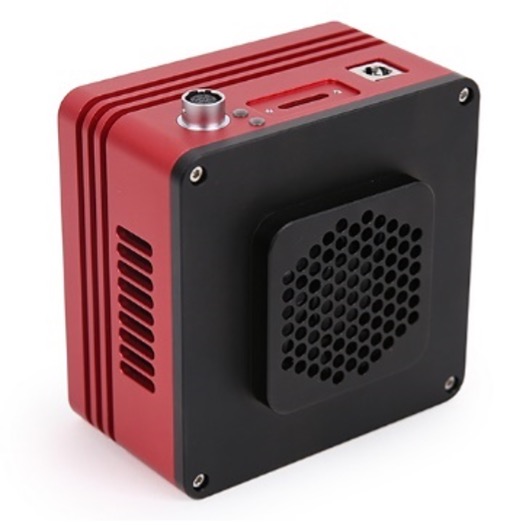

BioCam SWIR Cameras BioCam SWIR camera series is a TE-Cooling USB3.0 InGaAs for short-wavelength infrared (SWIR) imaging application. This SWIR camera is uitable to capture images in both visible and infrared wavelengths, at a wide range of 400nm to 1700nm. It is an excellent choice for high precise and quantitative researches. The camera has a smaller pixel size of 5μm. The BIC-SWIR-1.3 series SWIR cameras can be used in NIR-II (1000~1700nm)  in vivo microscopic imaging, hyperspectral imaging, laser spot observation, machine vision and general infrared detection, near-infrared spot detection, spot shooting and analysis, near-infrared target recognition, fluorescence imaging, fluorescent material imaging, Image contrast enhancement, night vision imaging, flame monitoring, material defect inspection, chip inspection, solar cell inspection, pharmaceutical and cosmetic inspection, food, fruit and vegetable defect inspection, grain sorting, plastic sorting, perspective inspection. Detailed Specifications Parameter Specification Sensor model Sony IMX 990-AABA-C Sensor  Type InGaAs Spectral  Range 400 – 1700nm Pixel Size 5.0 mm´ 5.0 mm Sensor Size 1/2″ Frame  Rate & Resolution 1 2 bits 8bit 70fps @ 1280 *1024 135fps @640* 512 13 2 fps@1280*1024 253fps @ 640 *512 DDR3  Memory 512MB (4Gb) Conversion Gain 4 4.3e/ADU Dynamic  Range 58.7dB Readout Noise 211e- Full  Well 181.6ke- SNRmax 52.6dB Sensitivity 121mV Dark  Current 383e – /s(0 °C ) 510e – /s(10 °C ) 638e – /s(20 °C ) Exposure Time 50us – 60s Gain Range 1x – 15x Shutter Global shutter Binning Software 2×2 , 3×3, 4×4 Data  interface USB3.0 Digital  I/O One optical-coupling isolated input, one optical-coupling isolated output, tow non-isolated input and output Data Format Mono8 / Mono12 Cooling  Performance -30 °C below ambient temperature General  Parameters Power  Supply by USB3.0 interface 12V power adapter Power  Consumption Temperature Working temperature -2 0 ~ 60 ℃ , storage temperature – 40 ~ 85 ℃ Humidity 20%-80% , no condensation Filter 400-1800nm (standard); 1030-1800nm (optional) Camera Size 80*80*45.5mm Camera Weight 380g Lens  Mount C-mount Software Complete SDK (software development kit) BioView Operating  System Win32 / WinRT / Linux / Mac OS/Android Certification CE, FCC
