Zeiss C-Mount Adapter

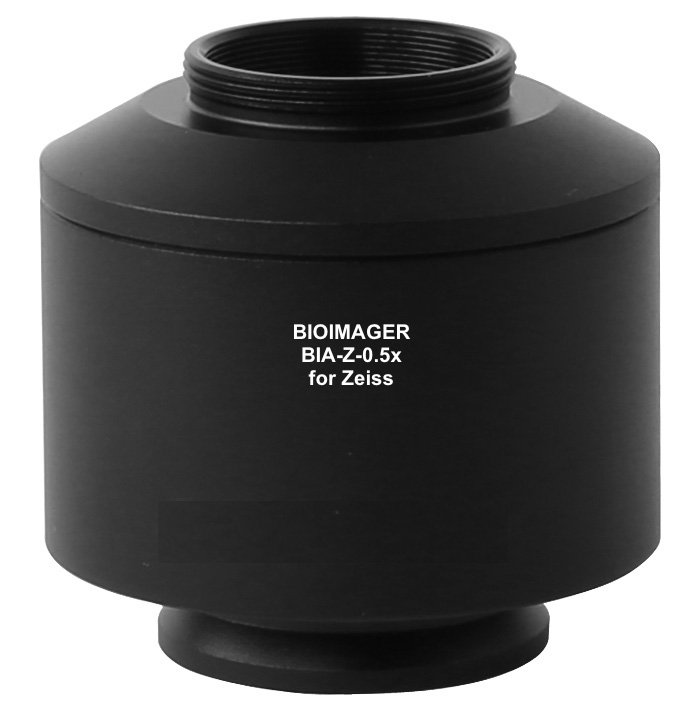

Zeiss Primo Star series Microscope TV Adaptor Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch)outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch); With different built-in reduction lens (1.2X,1X, 0.8x 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3″,1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips); Can be installed in Zeiss UIS trinocular tube such as: Zeiss Axiolab series, Zeiss Axioscope series, Zeiss PrimoStar series, Zeiss Axiovert series, Zeiss Stemi series, Axiophot-2 Axioplan-2 Axioskop-2 Axiostar Axiotech Series microscope Build of material: anodized aluminum; Telecentric optics with low light deficiency; Parfocal with different microscope objective lenses; Diffraction limited MTF; Aperture totally coupled with UIS microscope objective’s exit pupil; Zeiss Phototube to C-Mount  or T2-Mount Adapter (Zeiss TV Adapter) Model Magnification Sensor Size Mount Type BIA-Z-1.2X(New) 1.2X 4/3”,1” T2-Mount BIA-Z-1.0x 1X 1”, 2/3” C-Mount BIA-Z-0.8x(New) 0.80X 1”,2/3” C-Mount BIA-Z-0.65x 0.65X 2/3”,1/1.8”,1/2” C-Mount BIA-Z-0.50x 0.5X 1/1.8”,1/2”,1/2.5” C-Mount BIA-Z-0.35x 0.35X 1/3”,1/4”，1/5” C-Mount Supported Microscope Specially designed for Zeiss Primo Star series , Zeiss Primo vert series microscope Note:Please specify your microscope model name, BIOIMAGER engineers will help you choose the right adaptor magnification according to the camera sensor size;
