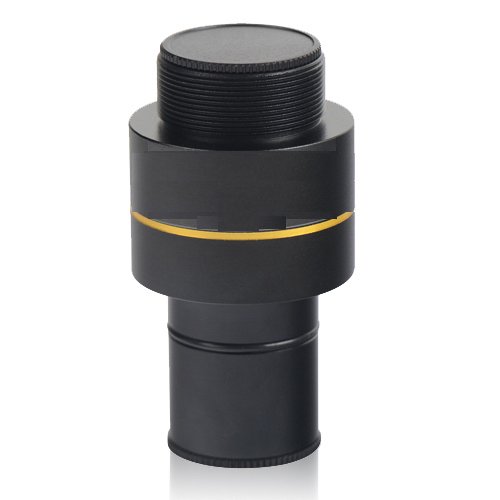

0.35x, 0.5x, 0.75x and 1x Eyepiece C-Mount adapter for all Microscopes, BIA-xCA

Eyepiece C-Mount Adapter Sizes: We offer various size of eyepiece c-mount adapters. The chart below lists camera chip sizes and suggested adapters. Camera Sensor size Suggested C-Mount Adapter 1/3”,1/4” or smaller 0.35x, 0.37x 1/1.8”,1/2”,1/2.5” or smaller 0.45x, 0.5x or 0.55x 2/3” or smaller 0.63x, 0.66x or 0.75x 1″ or larger 1x Adapters: For use with all types of microscopes or use with eyepiece mount, we offer a 30.00 and 30.50mm adapters. It is important to match the size of your camera chip to the magnification in your C-Mount adapter. To use this type of 23.0mm eyepiece c-mount adapter with the main video-port of the microscopes, we offer a customized adapter at different sizes:   Types: We offer the eyepiece c-mount adapters in two types: Fixed Focus Adjustable Focus The adjustable focus allows magnifying the image or even making it smaller. We have three models of 0.37x, 0.5x and 0.75x adjustable focus eyepieces. The 0.37x Adjustable focus c-mount adapter has variable magnifications from 0.35x to 0.5x, while the 0.5x adjustable c-mount adapter covers from 0.38x till 0.63x, the 0.75x can vary from 0.58x till 0.89x and the 1x adjustable focus can cover from 0.90x till 1.1x.
