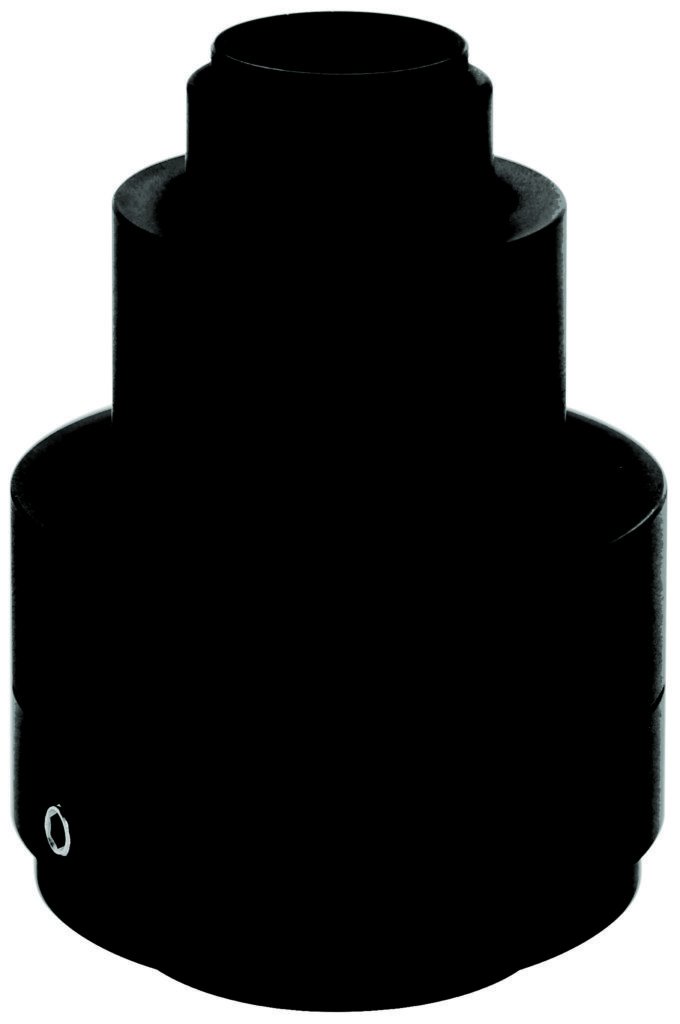

Huvitz 0.50x C-Mount Adapter BCA-H-0.5x

Huvitz Microscope C-Mount Adapter Convert the Huvitz trinocular microscope phototube/head/port (have standard 42 mm outer diameter for the insertion end to phototube) to traditional C-Mount type (25.4 mm or 1 inch diameter with 32 threads per inch); With different built-in reduction lens (1X, 0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head suitable for 1″, 2/3″, 1/1.8″, 1/2″, 1/2.5″, 1/3″ or 1/4″ inch CCD or CMOS sensor chips); Can be installed in UIS trinocular tube such as : HUVITZ HRM series, HSZ series microscopes Build of material: anodized aluminum; Telecentric optics with low light deficiency; Parfocal with different microscope objective lenses; Diffraction limited MTF; Aperture totally coupled with UIS microscope objective’s exit pupil; Huvitz  Phototube to C-Mount Adaptor (Huvitz TV Adaptor)   Huvitz Model Our Catalogue #     HSZ-CP1X BCA-H-1x     HSZ-CP0.63X BCA-HS-0.63x     HSZ-CP-0.5X BCA-HS-0.5x     HSZ-CP-0.35X BCA-HS-0.35x   Product Picture Magnification 1X 0.63X 0.5X 0.35X Sensor Size 1″, 2/3″ 2/3″,1/1.8″,1/2″ 1/1.8″,1/2″,1/2.5″ 1/2.5″,1/3″,1/4″ Microscope Specially designed for HUVITZ  HRM300 series Upright, HSZ series Stereo microscopes If you need help, please contact us and specify your microscope brand and model and your camera brand, model and chip size (if you know), Bioimager engineers will help you choose the right adaptor magnification; Item #BCA-H
