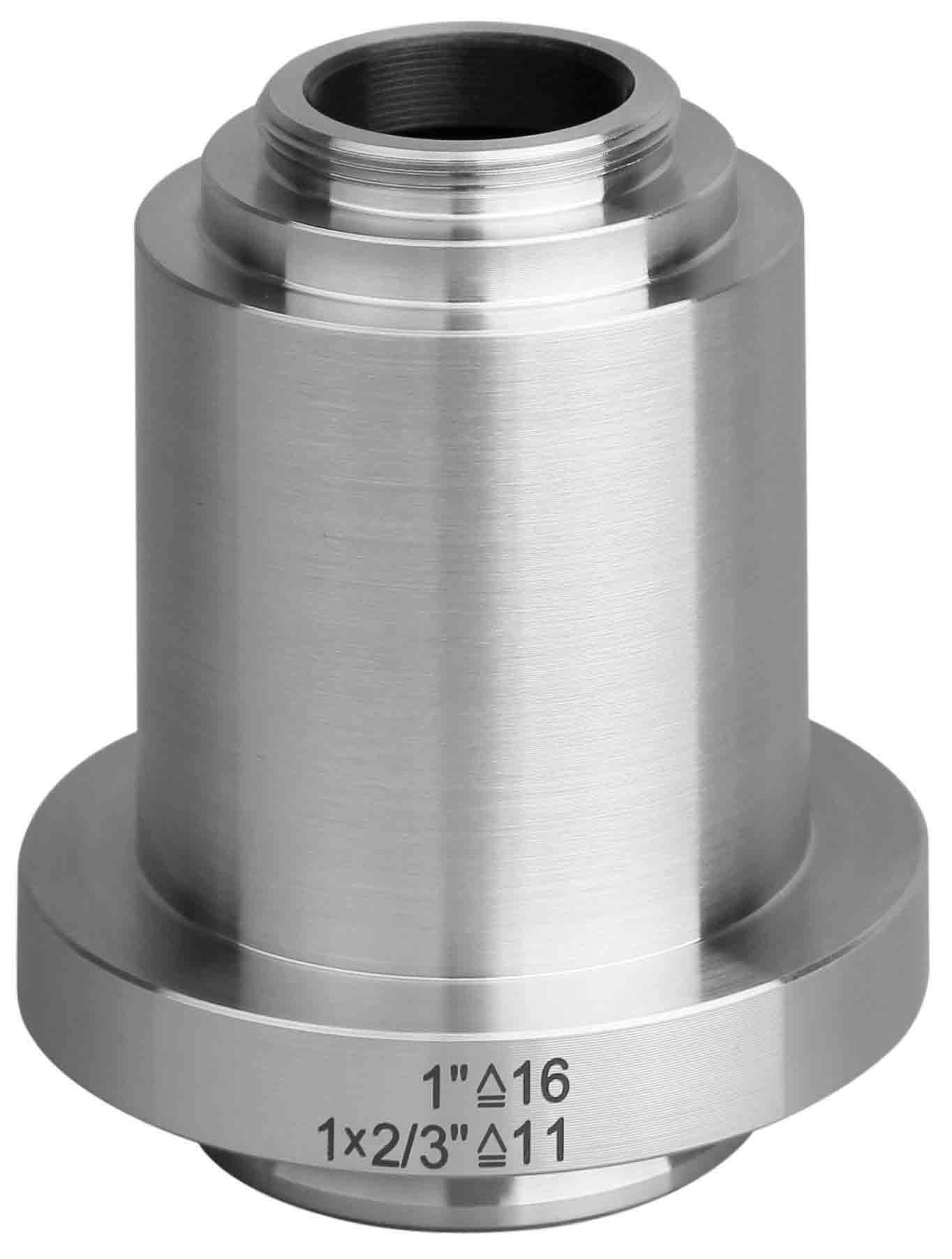

Leica 11541510 1x C-Mount Adapter

Leica C-Mount Adapter Leica Microscope C-Mount Adapter Convert the LEICA trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch); With different built-in reduction lens (1X, 0.7X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1″, 2/3″, 1/1.8″, 1/2″, 1/2.5″, 1/3″ or 1/4″ inch CCD or CMOS sensor chips); Can be installed in UIS trinocular tube such as: specially designed for LEICA DM series biology microscopes and industrial microscopes; Build of material: stainless steel material; Telecentric optics with low light deficiency; Parfocal with different microscope objective lenses; Diffraction limited MTF; Aperture totally coupled with LEICA UIS microscope objective’s exit pupil; Leica  Phototube to C-Mount Adaptor Leica Model# Our Catalogue # 11541510 BCA-L-1x 11541543 BCA-L-0.7x 11541544 BCA-L-0.55x 11541512 BCA-L-0.35x  Photo Magnification 1X 0.70X 0.55X 0.35X Sensor Size 1″, 2/3″ 2/3″,1/1.8″,1/2″ 1/1.8″,1/2″,1/2.5″ 1/2.5″,1/3″,1/4″ Microscope Specially designed for LEICA DM series biology microscopes and industrial microscopes Drawing If you need help, please contact us and specify your microscope brand and model and your camera brand, model and chip size (if you know), Bioimager engineers will help you choose the right adaptor magnification;
